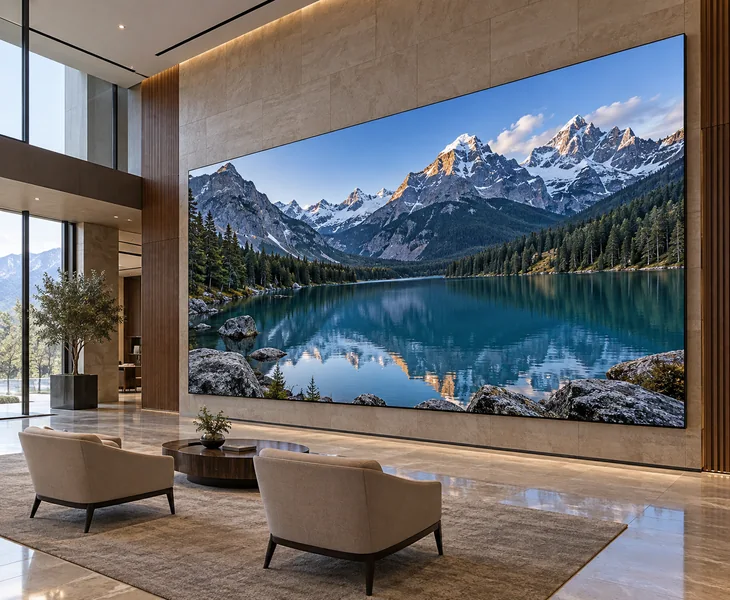

Why Choose Prevision COB LED Display
- Fine Pixel Pitch P0.9-P1.87mm for Close Viewing.
- 4K Resolution with aspect ratio of the 16:9 screen size.
- Up to 10,000:1 High Contrast of the COB LED Display.
- Front-Service Design for Easier Installation and Maintenance.
COB LED Display Solutions for High-End Visual Applications
COB LED display (chip-on-board LED display) is an advanced display technology. It involves directly installing LED chips on a PCB for encapsulation and cutting to form a single module. Compared to traditional SMD LED displays, COB technology offers higher durability, better protection, better heat dissipation, better visual performance, and ultra-fine pixel pitch capability.
Our COB LED Display adopts matte black packaging technology, achieving a contrast ratio of 10,000:1. The high contrast ratio enhances the picture quality, making it more vivid and lively, and providing a stunning visual experience.
COB LED display has become an important display medium for high-end displays, home viewing, high-end meetings, high-end hotels, and brand retail. As a COB LED manufacturer, we have 15 years of industry experience, providing one-stop services covering research and development, design, production, and installation guidance. We have over 20,000 installation cases. Our professional after-sales service ensures the successful completion of your COB LED display project.
Choosing Prevision as your COB LED display supplier is the best choice.
COB LED Display Product Categories
Due to the differences in application scenarios, various product classifications of COB LED displays have emerged. As an engineering product that can be customized, our COB LED displays achieve the technical requirements of your display projects through flexible configuration.
An ultra-small pixel pitch delivers high-definition images, sharp text, and fine detail without graininess. Suitable for meeting rooms, control rooms, command and dispatch centers, corporate display walls, studios, and high-end retail stores.

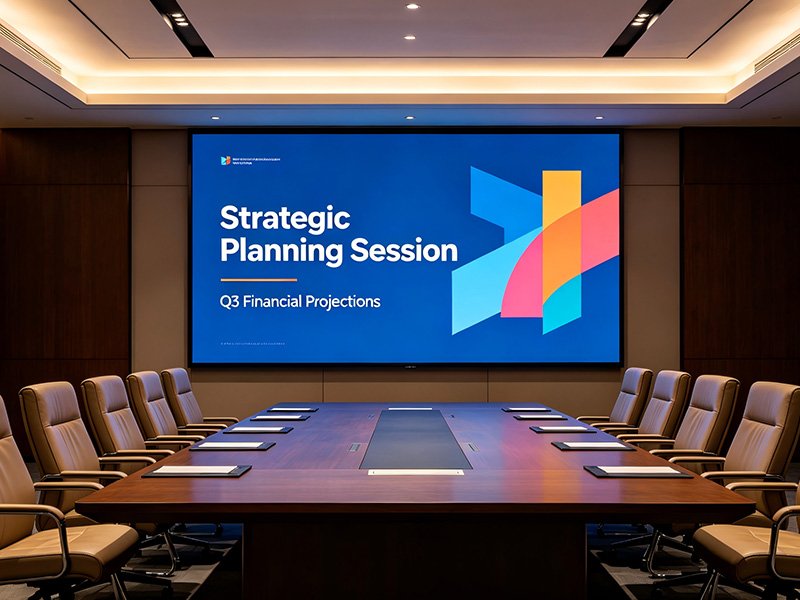

A seamless display supports large screen sizes, consistent brightness, and flexible aspect ratios. Suitable for data monitoring centers, security command centers, corporate lobbies, home theaters, and exhibition centers.

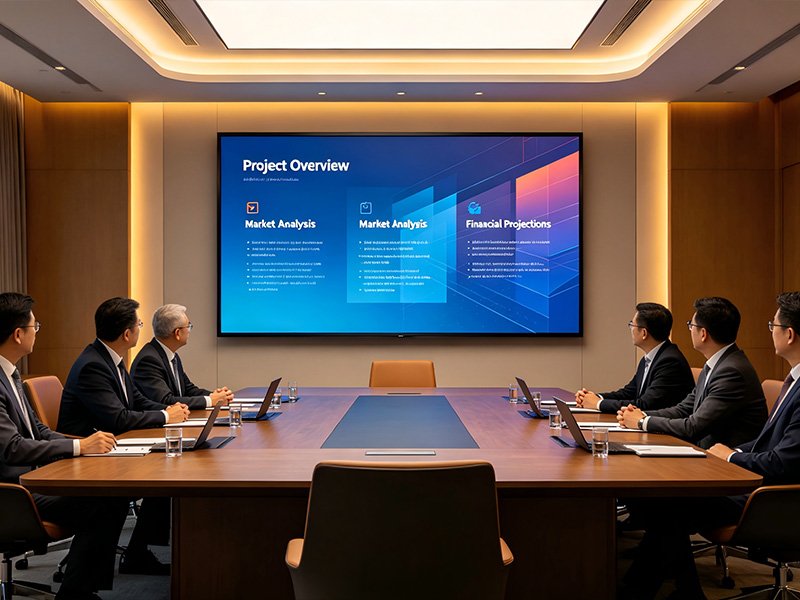

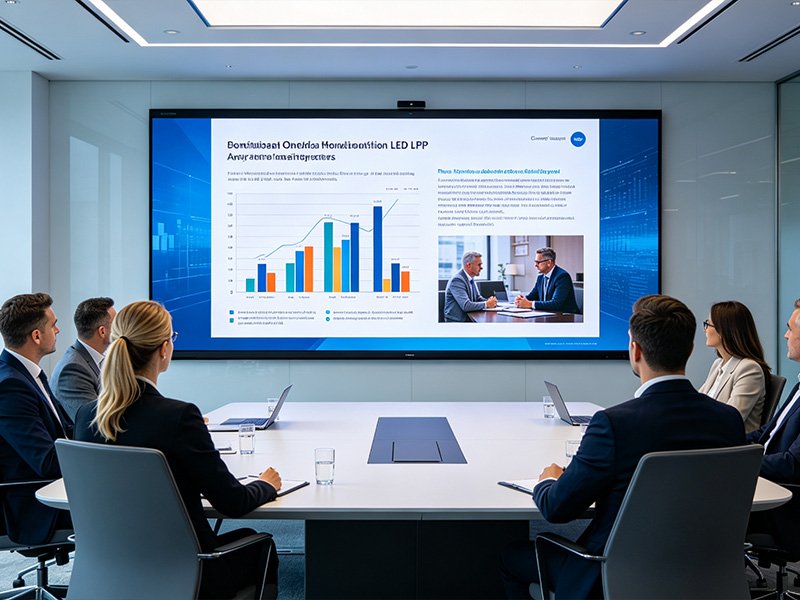

An integrated control system, built-in audio, and multiple signal inputs support plug-and-play operation. The display is easy to install and can be used as a mobile or wall-mounted screen in meeting rooms, classrooms, offices, and small exhibition spaces.

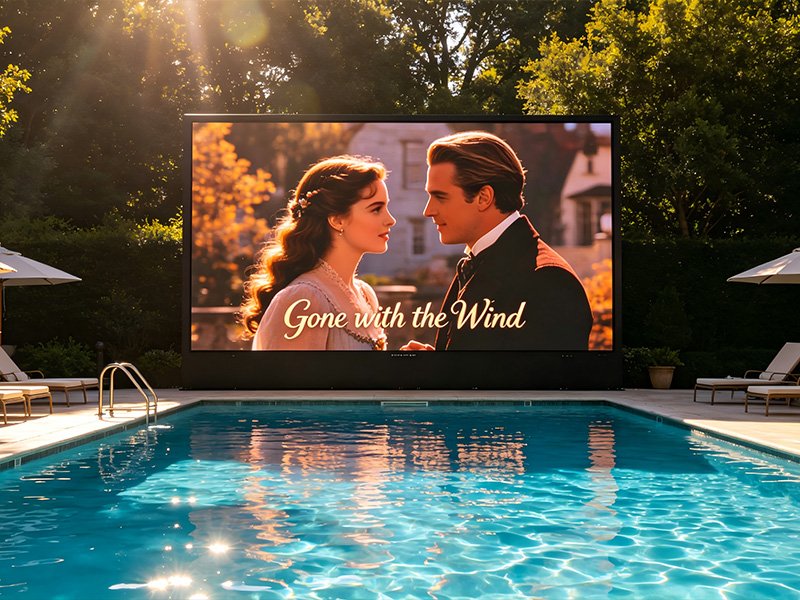

An IP65 waterproof rating, UV protection, and weather-resistant design support stable, long-term outdoor operation with high-quality images. Suitable for high-definition and high-end outdoor displays.

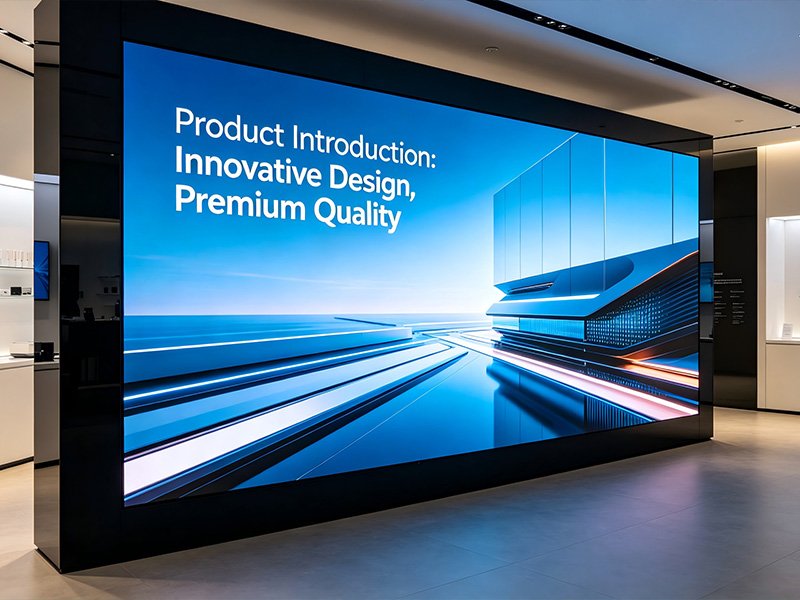

Excellent image quality, a premium appearance, and stable long-term operation make this display suitable for shopping malls, brand stores, exhibition halls, advertising displays, hotel reception areas, airport lobbies, and VIP areas.

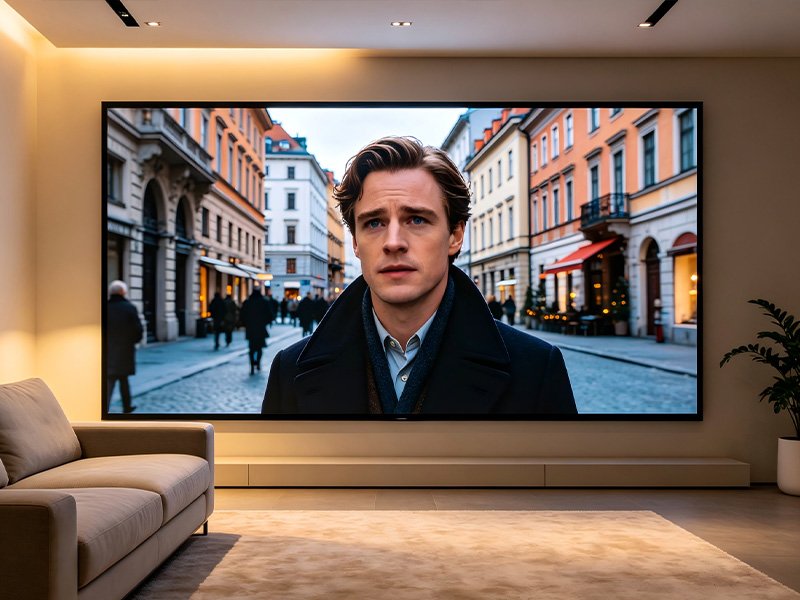

A smaller pixel pitch supports high resolutions, including 2K, 4K, and 8K, with image quality approaching that of LCD displays. This advanced technology is used in command centers, financial institutions, high-end conference systems, and data visualization systems.
Strong surface protection, high impact resistance, touch support, and a long service life make this display suitable for education, training, interactive exhibitions, retail experiences, smart meetings, and interactive entertainment.
Front maintenance and installation simplify access and save installation space. The clean, elegant appearance is suitable for recessed wall installations, control centers, and commercial display walls.
Key Advantages of COB LED Display
The COB LED display features a high protection level, high-definition picture quality, seamless and smooth connection without gaps, outstanding performance, and long lifespan, as well as high return on investment.
The COB technology will encapsulate a protective layer on the LED chip, thereby enabling the display screen to have the following protective capabilities: dust-proof, moisture-proof, and shock-proof.
The COB LED display has an extremely small pixel pitch, which enables the following effects: clearer images, better text readability, and smoother visual effects.
Unlike traditional LED displays, COB (chip-level packaging) can offer a more uniform and smoother surface, as well as a better appearance.
High-quality electronic components ensure a service life of over 100,000 hours. The COB LED display is resistant to damage and does not age easily.
The integrated COB design reduces connection points and exposed components. Its protective encapsulation helps reduce damage and maintenance requirements, lowering long-term servicing costs.
The COB technology enables the LED chips to be directly encapsulated on the PCB, significantly enhancing the heat dissipation performance and facilitating stable operation.
Ideal for Mission-Critical Applications
COB displays combine integrated circuit design, stable packaging technology, and strong durability. They are widely used in applications with demanding stability requirements, including command centers, monitoring systems, data visualization, security systems, high-end meetings, and brand retail.

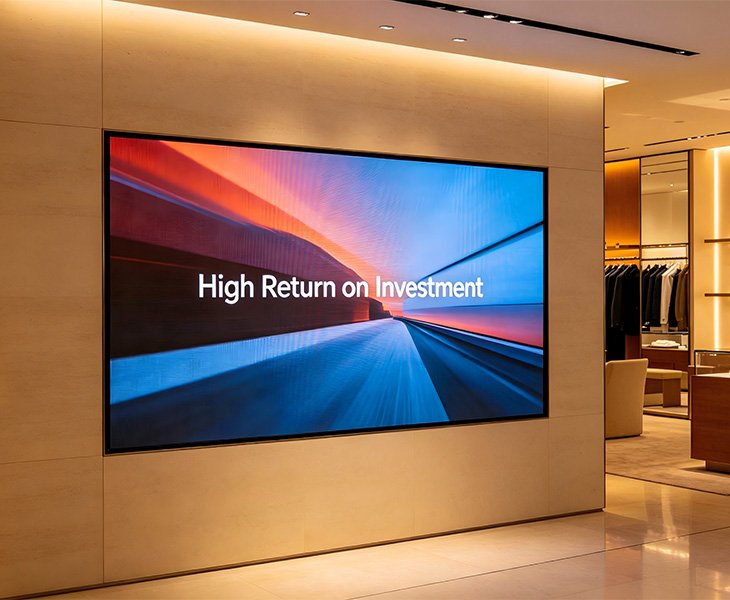

Better Long-Term ROI
Although the initial cost of COB is relatively high, its high-definition image quality, stable 24/7 operation, and long-term benefits can offer greater value. A refined appearance and improved display quality enhance the installation space.
COB LED Display Installation Cases
A business client in Vienna, Austria, needed to equip a meeting room with a high-resolution COB LED display for executive meetings. The main challenge was that due to the close proximity of the attendees to the screen, it was necessary to display electronic spreadsheets, presentations, and video content clearly. Prevision Company configured a 4.8×2.7-meter P1.25 pixel pitch COB LED video wall, providing a native 4K resolution of 3840×2160. Its fine-pitch pixels can achieve high pixel density, ensuring that small text and detailed presentation content are clearly displayed; at the same time, the COB surface packaging technology provides additional protection for the display screens commonly used in meeting environments.
A system integrator in Seoul, South Korea, needed a high-resolution COB LED video wall for the control room to display multiple monitoring windows, data dashboards, maps, and alarm information. The screen must have a backup function. Prevision configured a P0.9 COB LED display with an effective area of approximately 3.456×1.944 meters, featuring a 4K resolution of 3840×2160. Its ultra-small pixel pitch enables operators to clearly read detailed information without the need for a large screen, and the COB LED display is designed with dual backups for power supply and receiving card to ensure long-term stable operation.
A high-end exhibition hall in Kuala Lumpur, Malaysia requires a high-definition indoor LED display for product videos, brand images, and detailed promotional content. The client desires a higher contrast ratio for the display and wants to reduce the risk of damage to visitors when they approach the display. Prevision has configured a 4.8 × 2.7-meter P1.2 COB LED display, achieving a 4K resolution of 3840 × 2160. The COB technology provides a protected display surface, and the fine pixel pitch supports clear product images when viewed closely. The screen’s contrast ratio of up to 10000:1 enhances the vividness of the colors and improves the display quality of the product on the COB LED display.
A corporate auditorium in Doha, Qatar requires a large COB LED display screen for presentations, corporate videos, real-time camera feeds, and executive events. The existing display system was unable to provide sufficient details under the auditorium’s lighting conditions, especially for small-sized presentation text. Prevision has equipped a COB LED display screen with dimensions of 6×3.375 meters and a native resolution of 3840×2160, featuring a pixel pitch of 1.5mm. Its high pixel density direct-view LED technology can clearly display the content. The 600 nits screen brightness does not rely on a dark projection environment. The high refresh rate of 7680Hz for real-time shooting images has no scan lines and offers a better video effect.
A media studio located in São Paulo, Brazil, requires a high-resolution COB LED display for presentations, video recording, and content production based on cameras. Due to the extremely limited maintenance space behind the wall installation, the traditional rear service access method is not practical. Prevision has configured a P1.56 COB LED video wall, with an actual size of approximately 6×3.375 meters and a resolution of 3840×2160 4K. With the front-service configuration, technicians can install and maintain this COB LED display at the front end, thereby reducing the maintenance space required behind the LED wall. The COB packaging process is waterproof, dustproof, and impact-resistant.
COB LED Display Parameters
- Specification
| Pixel Pitch | 1.56mm | 1.25mm | 0.9mm |
|---|---|---|---|
| Cabinet Size | 600×337.5mm | 600×337.5mm | 600×337.5mm |
| Module Size | 150×337.5mm | 150×337.5mm | 150×337.5mm |
| Brightness | 550–800 nits | 550–800 nits | 550–800 nits |
| Refresh Rate | 3840Hz–7680Hz | 3840Hz–7680Hz | 3840Hz–7680Hz |
| Waterproof Rating | Indoor IP34 | Indoor IP34 | Indoor IP34 |
| Viewing Angle | Horizontal: 160° / Vertical: 140° | Horizontal: 160° / Vertical: 140° | Horizontal: 160° / Vertical: 140° |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
Testimonials
The COB LED Display gives us excellent clarity for spreadsheets, presentations, and video. Even at close viewing distances, small text remains easy to read.
Martin GruberThe P0.9 COB LED Video Wall allows our operators to view multiple data windows clearly without requiring an oversized display. The detail is exactly what we needed for the control room.
Ji-hoon ParkThe 4K COB LED Display makes our product videos look much more detailed and professional. The protected COB surface also gives us more confidence in a busy showroom environment.
Aiman RahmanThe COB LED Wall remains clear under our auditorium lighting, and presentation text is much easier to read than with our previous display system.
Nasser Al-KuwariThe P1.56 COB LED Display gives us the 4K image quality we need for presentations and recorded content. Front maintenance is also very useful because we have almost no service space behind the screen.
Rafael Oliveira
COB LED display (Chip-On-Board LED Display) is a type of display manufacturing process that directly fixes and encapsulates the LED chips onto the PCB board. This design creates a completely protective and smooth display surface, which is more durable and offers better visual effects compared to traditional LED displays.
The main differences lie in the structure and performance.
COB LED display:
- Fully encapsulated surface
- Stronger protection performance
- Smoother display screen
- More suitable for fine pitch and close viewing distance
- Better contrast ratio of 10000:1
SMD LED display:
- Exposed LED beads
- Easier to maintain but more prone to damage
- More common in general applications
- Ordinary contrast ratio: 5000:1
In simple terms:
COB (chip-on-board) is more advanced and durable, while SMD (surface mount device) has a more traditional character and lower cost.
This depends on your specific application situation.
If you require the following features, then choosing COB would be more suitable:
- High durability
- Ultra-fine pixel pitch
- Close viewing distance
- High-quality display screen
SMD can meet the following requirements:
- General indoor or outdoor displays
- Projects with limited budgets
COB LED display screens are widely used in:
- Control room
2.Command Center
3.Company Conference Room
4.Broadcast Studio
5.Exhibition Event
6.Retail Space
7.High-end Indoor Display Environment
8.High-end Outdoor Display Environment
Yes. The COB LED display screen is specifically designed for viewing in close proximity.
With extremely small pixel pitches (0.6 – 1.56 mm), they possess the following features:
- Clear display of text
- Smooth image effect
- High resolution with ultra-high-definition picture quality experience
This makes them highly suitable for your meeting room and control center display projects.
Yes. COB LED displays use protective encapsulation to improve durability. Their design includes:
- A fully encapsulated display surface
- Fewer exposed components
- Protection against dust, moisture, and impact
These features help protect the LED chips during use.
Yes. The COB display screens usually have lower maintenance requirements for the following reasons:
- Highly integrated design, reducing connection points
- Fewer exposed components
- Higher protection and lower damage rate
- Strict factory testing process, resulting in more stable performance
This reduces your long-term operating costs.
The pixel pitch of the COB LED display screen is (0.4mm, 0.5mm, 0.6mm, 0.9mm, 1.2mm and 1.5mm), which is suitable for applications with fine pitch and high-end display projects. It is particularly suitable for close viewing.
The specific specifications depend on the requirements of your display project.
The common installation methods for COB LED displays include:
- Wall-mounted
- Front-end maintenance embedded installation
- Integrated mounting bracket system
- hanging installation
This installation plan depends on the design of your display project and the location of the space.
If you need recommendations for a suitable COB LED display solution, please provide the following information:
- Installation application scenario
- Screen size
- Viewing distance
- Installation method
- Customization requirements
- Budget range
- Number of display screens needed
Your project drawings or photos will help us provide a more accurate solution.
Related Products
High-resolution Indoor LED Displays for meeting rooms, auditoriums, showrooms, control rooms, and other close-viewing applications.

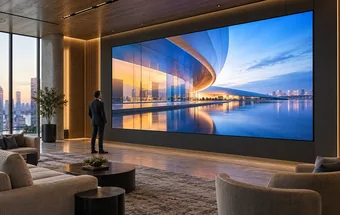

Modular LED Video Wall Panels for building fine-pitch, high-resolution video walls in corporate and professional AV environments.

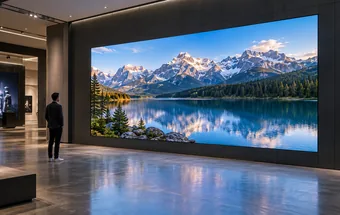

Precision LED Screen Panels for customized indoor displays, fine-pitch video walls, and large-format visual systems.

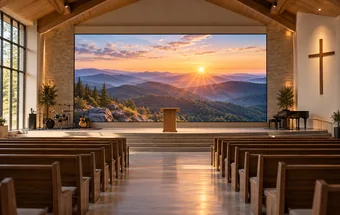

High-definition Church LED Walls for worship lyrics, scripture, presentations, live video, and close-viewing sanctuary applications.
