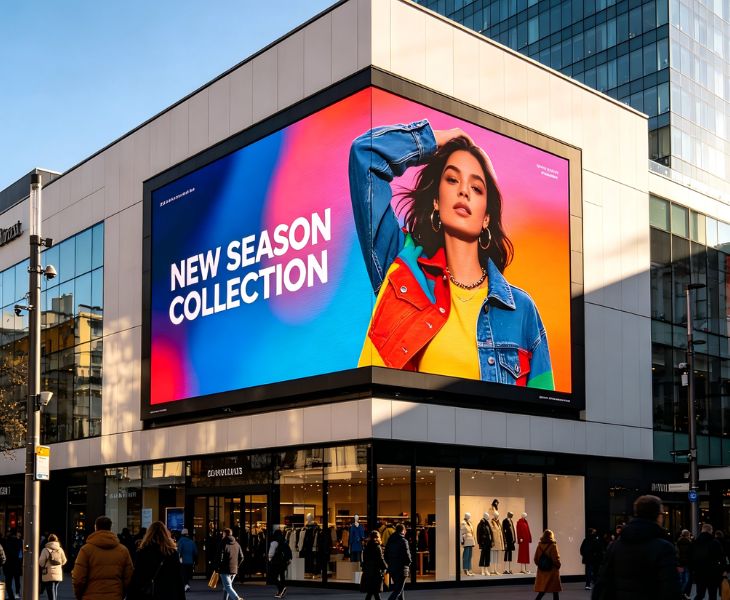

Why Choose Prevision Outdoor LED Panel
- The brightness of 5000 to 20000 nits can be customized to ensure excellent visibility for the Outdoor LED panel.
- The outdoor LED panel adopts the common cathode energy-saving technology, which can save 35% of energy compared to ordinary outdoor LED displays.
- Each outdoor LED panel has undergone strict waterproof testing and has achieved the IP65 level of protection.
- The quick-lock design makes it easy to maintain the device from both front and rear.
Your Trusted Outdoor LED Panel Manufacturer

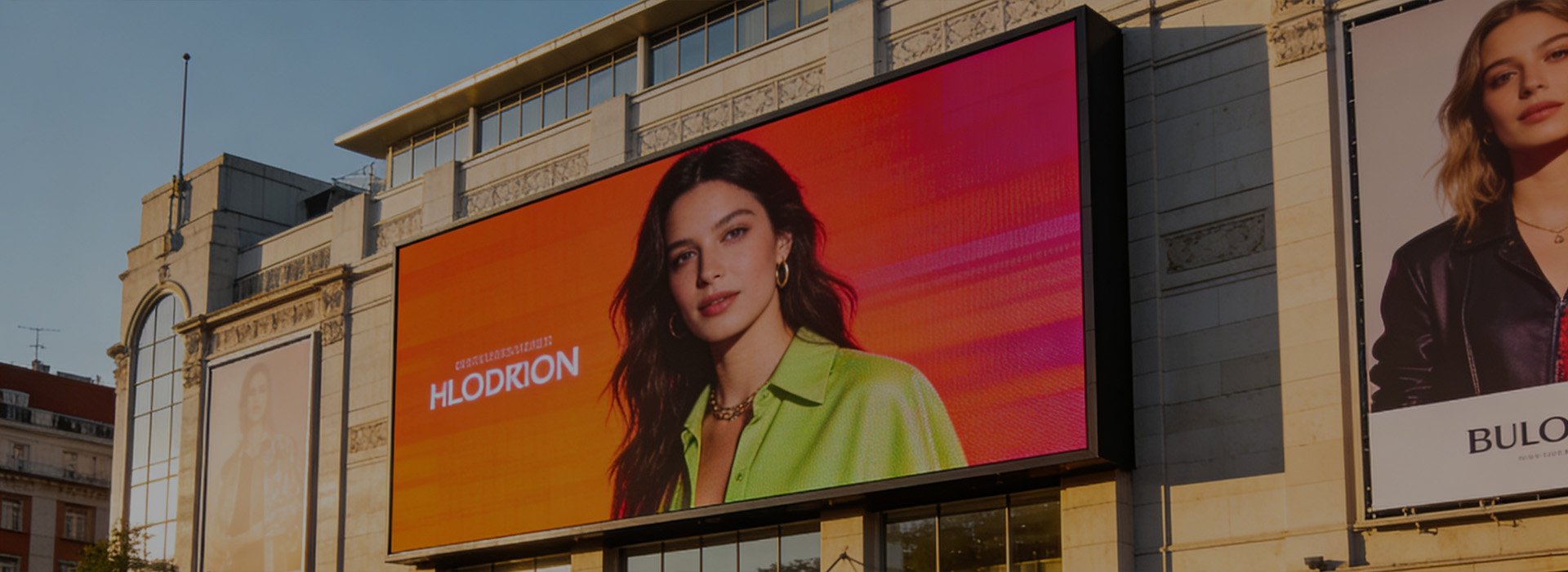

An outdoor LED panel is a high-performance modular display unit specifically designed for outdoor environments. It features high brightness, is not affected by direct sunlight, has an IP65 waterproof rating and UV protection, is robust and durable, and can operate in harsh outdoor weather conditions. This makes it ideal for outdoor advertising, digital signage, sports venues, and large public displays.
If you are in need of an outdoor LED panel manufacturer, or if you require an outdoor LED panel solution, Prevision is your ideal choice. We offer a one-stop service for your outdoor LED panel project, covering the entire process from the initial project design and solution improvement, to product design and production, product delivery to on-site installation and commissioning, as well as the subsequent follow-up services. With 15 years of experience in outdoor LED panel manufacturing and over 20,000 project installations under our belt, choosing us means choosing peace of mind and confidence.
Outdoor LED Panel Product Categories
The outdoor LED panel features a modular and lightweight design, which is easy to install and highly versatile, suitable for various application scenarios.

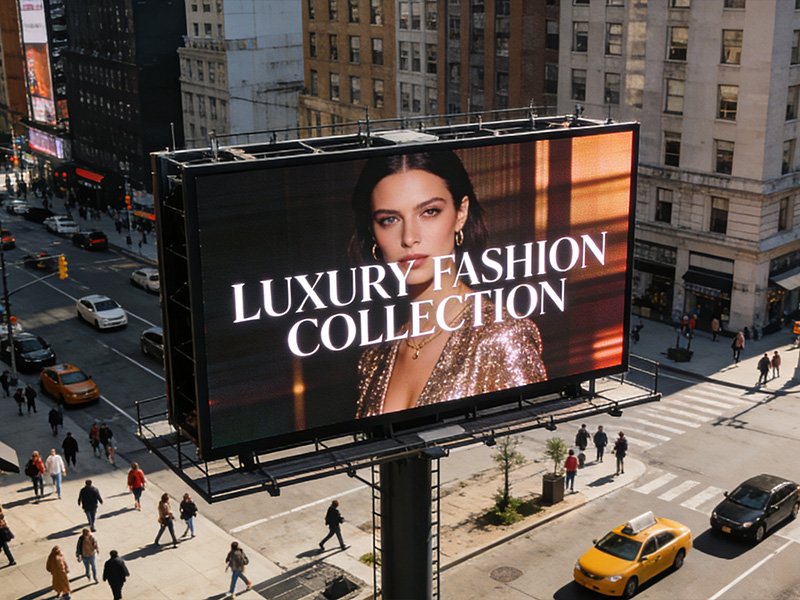

Long-term design for outdoor projects ensures stable operation throughout the day. It features a high level of water resistance with IP65 rating. It offers high brightness ranging from 5000 to 10000 nits. Common pixel pitches include P4/P5/P6/P8/P10.
Rental outdoor LED panels feature lightweight cabinets, quick locks, and easy installation. Common pixel pitches include P1.9/P2.6/P2.9/P3.91/P4.81. Suitable for concerts, festivals, exhibitions, and outdoor stages.

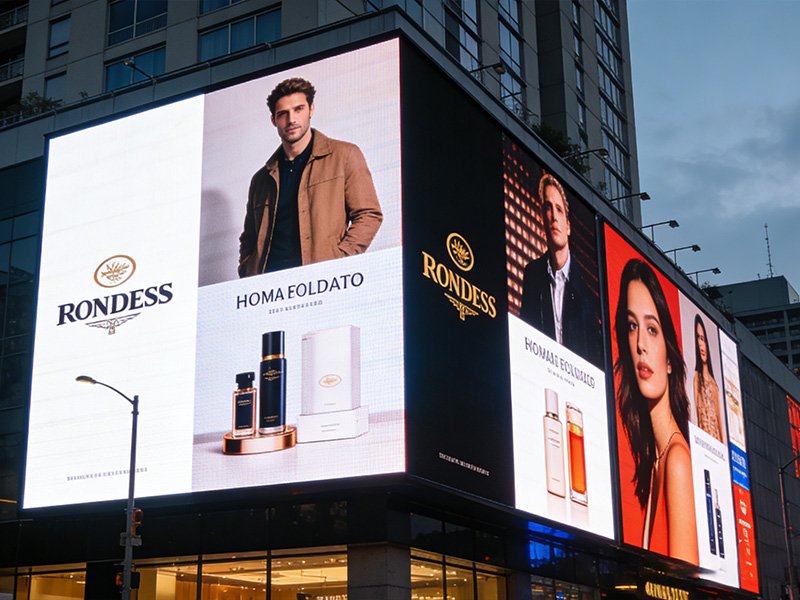

A high-quality outdoor display suitable for close viewing, with high refresh rate: 3840Hz or 7680Hz. High contrast, rich and impactful colors. Common pixel pitches: P2/P2.5/P3. Applications: Outdoor retail, high-quality outdoor spaces, event backgrounds.
Energy Saving Outdoor LED Panels adopt the common cathode energy-saving technology. They are powered separately at 3.8V and 2.8V, which reduces heat generation and saves electricity. Compared with ordinary outdoor LED displays, they can save 40% of energy.
Naked-eye 3D outdoor LED panels usually feature 90-degree right-angle and arc-shaped LED displays. They achieve a 3D effect through the use of the visual disparity between the two eyes and the precise image separation of the screen.
As a mobile outdoor LED panel, it has a higher transmission rate, a wider coverage area, and can be easily moved. At the same time, through GPS positioning, it can play appropriate advertisements at the corresponding location to maximize the revenue.

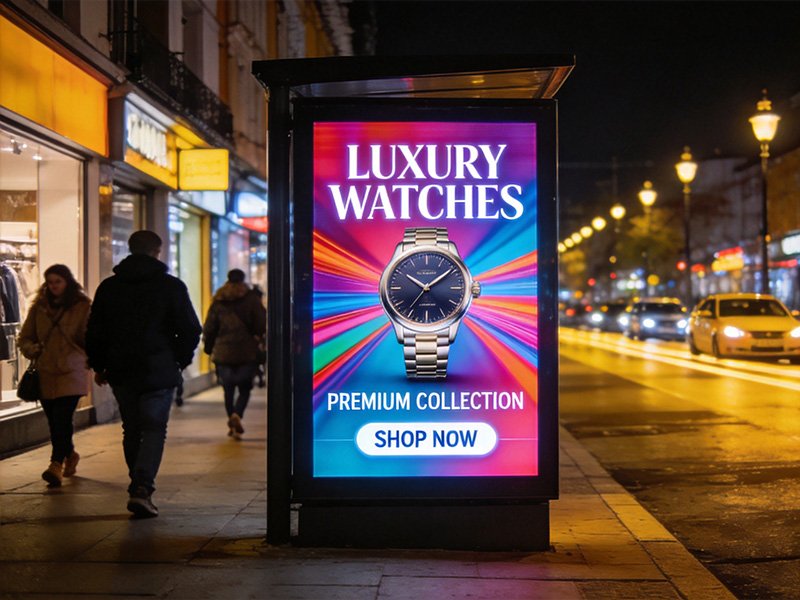

The outdoor poster LED panel combines high brightness, a clear display, water resistance, and intelligent control. A cloud platform enables remote management and publication of advertising content. It is mainly used on busy commercial streets.

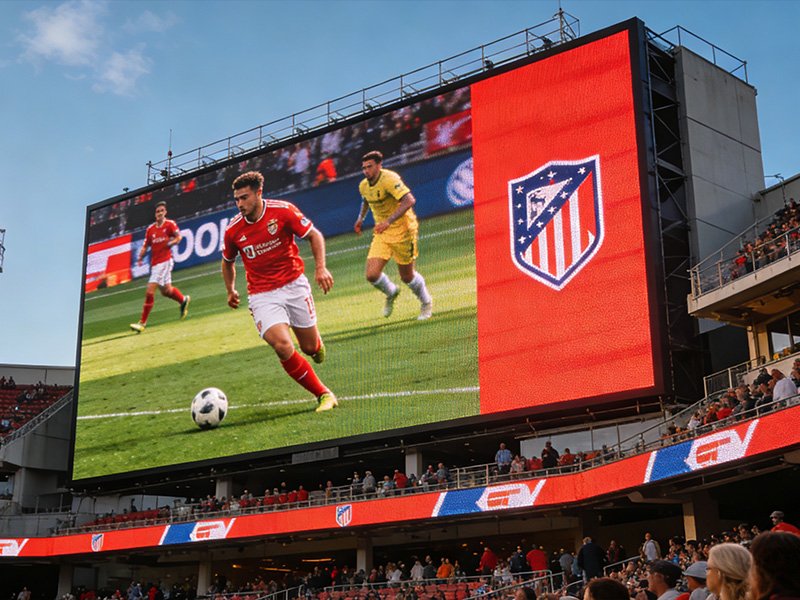

The Stadium Outdoor LED Panel features high brightness and high refresh rate. It can operate stably outdoors for a long time and is suitable for live broadcasts of sports events and the display of commercial advertisements.
Features of Outdoor LED Panels
Outdoor LED Panels feature high brightness, excellent water resistance, a modular seamless connection design, stable operation in all weather conditions, intelligence, and UV protection.
A brightness of 5000 to 10000 nits enables outdoor LED displays to be clearly visible even under direct sunlight.
An IP65 waterproof rating and resistance to rain, dust, wind, and temperature fluctuations support long-term outdoor use.
The flexible panel size can meet the requirements of different screen sizes. The seamless panel connection technology is suitable for large LED video walls and is easy to expand and replace.
Industrial electronic component assemblies have a service life of over 100,000 hours. Their reliable performance is suitable for commercial projects.
The specifications of outdoor LED panels range from P2.5 to P10, making them suitable for both medium-distance and long-distance outdoor viewing.
High refresh rates of 3840Hz and 7680Hz support smooth video playback for outdoor live streaming, events, and 3D content.

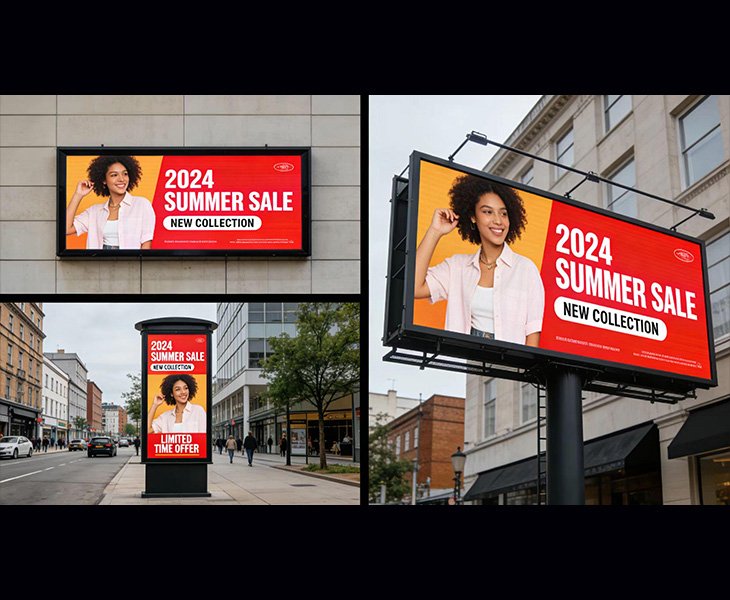

Flexible Installation Options For Your Project
Prevision Outdoor LED panels offer various installation options.
Fix it to the wall, make the frame and install the LED display screen, or directly install the LED display screen on the wall.
Install on the columns, make the columns and the steel frame structure, and install the LED display screen on them.
Install by hoisting, suspend the LED display screen on the pedestrian bridge or the steel structure.
If you have any issues with installing the Outdoor LED panel, we will offer remote support to ensure a trouble-free installation process.

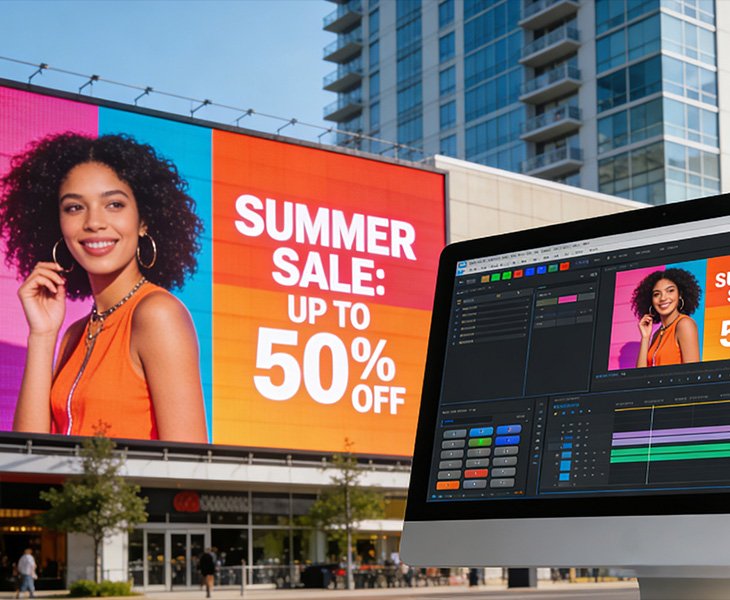

Energy-Efficient & Intelligent Power Management
The outdoor LED panel, as a display medium for outdoor commercial advertisements, features energy conservation and environmental friendliness. It is widely used in various scenarios and can automatically adjust its brightness according to the external environmental light intensity. The core energy-saving technology ensures that the average energy consumption per square meter is: 150 watts per square meter.

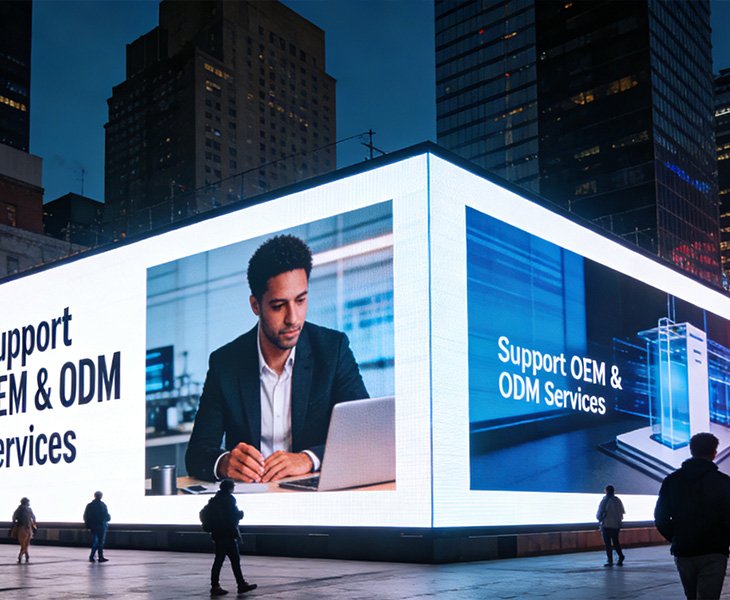

Customization & OEM/ODM Support
We offer the dimensions and shapes of outdoor LED Panels, brightness, power supply design, pixel pitch selection, control system selection, as well as the option to silk-screen your brand logo on the LED display. At the same time, we can customize a unique LED display that suits your specific installation environment.

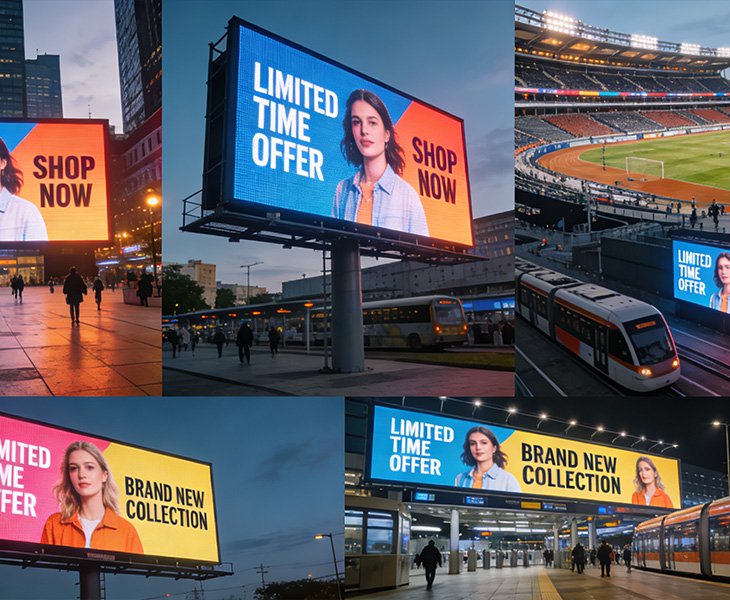

Wide Application Compatibility
Prevision Outdoor LED panels are widely used in various outdoor scenarios such as outdoor billboards, building exteriors, sports stadiums, streets, public spaces, outdoor rental stages and events, etc.
Outdoor LED Panel Installation Cases
The clients of the outdoor media company in Melbourne, Australia, replaced their traditional static advertising screens with outdoor LED panels. Prevision provided the FS series with a P8 pixel pitch. The screen size is 12.48 x 5.76 meters, with a resolution of 1560×720 pixels and a custom brightness of 9000 nits. It has excellent visibility even under direct sunlight. It is equipped with a brightness sensor, which can reduce light pollution and be more energy-efficient. It uses a cloud platform for remote control, allowing for remote replacement and management of the advertising content.
Riyadh, Saudi Arabia requires an outdoor LED panel to be installed on the exterior wall of a newly opened shopping center. We offer the FS series of all-aluminum structure for better heat dissipation and the panels’ common cathode energy-saving technology reduces the heat generated by the light bulbs, with a brightness of up to 8000 nits. However, compared to traditional outdoor LED displays, it is 35% more energy-efficient, making the Outdoor LED panels more suitable for the hot climate in Saudi Arabia. Screen size: 9.6 x 5.76 meters. Pixel pitch: 6.67mm. Resolution: 1440 x 864 pixels.
A professional football stadium in Madrid, Spain needs to install an outdoor LED panel around the stadium, with a total length of 180 meters. We offer a P10 pixel spacing, with a brightness of 9000 nits, which enhances the excellent visibility in outdoor strong light environments. The refresh rate is 7680Hz without screen flicker. The sponsor’s advertisements can be clearly displayed during live broadcasts. The LED modules use silicone covers and the top of the box uses high-density sponge to protect the players from injury. The IP65 waterproof grade and UV protection ensure long-term stable operation in outdoor football stadiums.
The client from Canada needs to install an outdoor LED panel at the transportation hub in Vancouver. It is a single-column structure outdoor LED panel with a screen size of 7.68×3.84m. We provide the customer with the CAD drawings of the entire steel frame structure to assist them in smoothly installing this LED panel project. We selected a pixel pitch of p5 and a resolution of 1536×768 pixels to clearly display the client’s advertisement. We adopted a cloud platform system, which facilitates the remote replacement of programs and management of this outdoor LED panel by the operators.
Specification
- Outdoor LED Panel Parameters
| Item | FS5 | FS5.7 | FS6.67 | FS8 | FS10 | |
| Technical | Pixel Pitch (mm) | 5 | 5.7 | 6.67 | 8 | 10 |
| LED Configuration | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | |
| LED Type | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| Physical Density (dot/m²) | 40000 | 30625 | 22500 | 15625 | 10000 | |
| Module Size (W ×H ×D) mm | 480x320x46.8 （Including handle） | |||||
| Module Resolution (W ×H) | 96×64 | 84×56 | 72×48 | 60×40 | 48×32 | |
| Module Material | Die-casting | |||||
| Cabinet Size (W ×H ×D) mm | 960x960x82.3 | 960x960x82.3 | 960x960x82.3 | 960x960x82.3 | 960x960x82.3 | |
| Cabinet Material | Aluminum Profile | |||||
| Scanning Mode | 1/8 | 1/7 | 1/6 | 1/5 | 1/2 | |
| Cabinet Flatness (mm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
| Grey Scale (Bit) | 14/16 | 14/16 | 14/16 | 14/16 | 14/16 | |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 | |
| Max number of supported base installations | 16 | 16 | 16 | 16 | 16 | |
| Installation/Service Method | Front or back installation/Front or back service | |||||
| Optical | Brightness (customizable) | 6000-10000 cd/㎡（Customized high brightness） | ||||
| Color Temperature | 6000-12000K adjustable | |||||
| Brightness Uniformity | ≥98% | |||||
| Color Uniformity | Within 0.003Cx,Cy | |||||
| Horizontal/Vertical View Angle | ≥140°/≥120° | |||||
| Contrast Ratio | ≥6000:1 | |||||
| Color Calibration of Single Dot | Yes | |||||
| Brightness Calibration of Single Dot | Yes | |||||
Testimonials
After upgrading to the Prevision outdoor LED panel, we can remotely manage the outdoor LED panel and quickly change the advertising content. It also runs very stably and is worthy of our long-term cooperation!
Daniel CarterWe need an LED panel that can operate in the extremely hot environment of Riyadh and provide high-definition picture quality. The outdoor LED panel from Prevision exceeded our expectations. This LED display can run perfectly every day, and our retailers especially like that it can update promotional information so quickly.
Faisal Al HarbiThe outdoor LED panel design for this football field exceeded our expectations even in the later stages of its use. The collaboration between the Prevision team and us in verifying the parameter details, as well as the professional installation guidance provided later, enabled the smooth installation of our project. We are extremely grateful to them. At the same time, the outdoor LED panel is performing extremely well!
Javier MoralesWe are extremely grateful to the Prevision team for providing the entire structure’s drawings and installation instructions, which enabled our outdoor LED panel to operate stably. At the same time, it saved us a lot of valuable time in configuring the remote control platform.
Emily Richardson
An outdoor LED panel is a display unit designed for bright outdoor environments. A waterproof, durable structure, UV protection, and a modular design for quick installation make it suitable for outdoor advertising, public displays, and large LED video walls.
The main differences are as follows
- Brightness: Outdoor brightness: 5000 – 1000 nits, Indoor brightness: 600 – 1500 nits
- Protection, Outdoor: Waterproof rating IP65; Indoor: Waterproof rating IP30
- Durability, Outdoor: Designed for long-term stable operation in outdoor environments. Indoor: Designed for use in indoor settings.
The indoor LED panels place greater emphasis on fine pixel pitch and close viewing distances.
The right pixel pitch determines the viewing distance.
Medium distance (3–6 m): P2.5 / P3
Medium–long distance (6–10 m): P4 / P5
Long distance (10 m+): P6 / P8 / P10
Choosing the appropriate pixel pitch can provide clear image quality and cost efficiency.
The price range for Outdoor LED Panel is $450 to $1500 per square meter. The exact price will depend on the screen size, pixel pitch, refresh rate, and the specific requirements of the client’s customization.
Outdoor LED panels support multiple installation options:
Wall-mounted installation
Hanging or truss installation
Floor-supported structures
Custom steel frame solutions
This flexibility allows adaptation to different project requirements.
There are three ways to control outdoor LED panels.
- Synchronous control. The LED video processor connects to the input signal source (HDMI, DVI, VGA) and plays the content of the input source in real time.
- Asynchronous control. The multimedia player box has its own built-in memory to play video content. The program can be changed by using a USB drive or a Wi-Fi port.
- The cloud platform system enables the control terminal to connect to the internet via Wi-Fi, network interface, 4G, and 5G. The control terminal is bound to the cloud platform, and the cloud platform is responsible for managing and changing the programs of the outdoor LED panel.
Our outdoor LED panels typically have a lifespan of up to 100,000 hours, depending on usage conditions, brightness settings, and maintenance.
They are designed for stable 24/7 operation in commercial and professional environments.
The warranty period for our outdoor LED panels is 3 years. This ensures that your LED walls will operate stably for an extended period and allows you to use them with peace of mind, without any worries about after-sales service.
